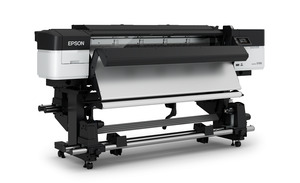

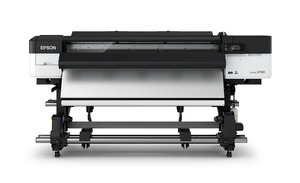

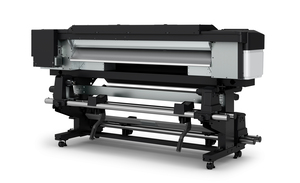

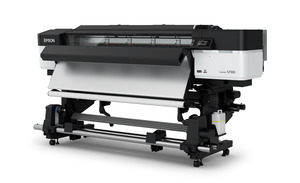

Epson SureColor SC-S7130 64-Inch Eco-Solvent Printer

Incredible Value with Exceptional Print Quality

The Epson SureColor SC-S7130 is designed to deliver exceptional quality at affordable cost of ownership for all types of indoor and outdoor commercial printing applications including posters, signs, banners, backlit panels, interior decorations, exhibition panels and more. Produce consistent and high image quality with Epson's advanced PrecisionCore MicroTFP printhead, Epson Precision Dot - Epson's proprietary advanced image processing technology, and the new Epson UltraChrome GS3 eco-solvent ink that has a wider colour gamut along with outstanding gloss level and colour vibrancy.

Exceptional print quality at affordable cost of ownership
Upgraded PrecisionCore MicroTFP Printhead for faster print speed1
Ultra reliable media feeding system
Wide media versatility

Find Ink

Overview

The SC-S7130 is engineered for a wide range of applications, including outdoor and indoor signage, banners and more. Its versatility and reliability, coupled with its cost effective ownership, make this printer a valuable addition to any print service provider’s lineup. The SC-S7130 is a testament to Epson’s dedication to creating innovative solutions that empower businesses to remain competitive while meeting their unique needs.

Improved Productivity - Built with latest generation PrecisionCore Micro TFP printhead for faster speed, precision, and consistent print quality.

Proven Reliability - The ultra reliable media feeding system is retained from the SC-S40670 known for stable operation and printing accuracy.

Incredible Value - Low cost of investment with faster speed and higher productivity.

Improved Colour Consistency - New temperature sensor near the ink dispensing nozzles ensures consistent colour output from first to last print.

Larger Ink Packs - Upsized 800ml ink packs for less frequent ink replacement.

4.3" Tiltable Touch Display - Upgraded optical touch display for more intuitive operation even with gloves on.

Remote Monitoring - Epson Cloud Solution PORT allows for printer fleet monitoring 24/7.²

What's in the box:

SureColor S7130 Printer
Ink Packs (800ml) - Cyan, Magenta, Yellow, Black
Epson Edge® Print PRO RIP
Power Cord
Maintenance Parts Kit: Wiper Unit, Flushing Pad, Air Filter (x2)
Waste Ink Bottle
Ink Cleaner
Cleaning Sticks
User Guide Kit

Specifications

Printing:

Printing Technology: PrecisionCore Inkjet Technology
Variable-Sized Droplet TechnologyPrint Head: PrecisionCore MicroTFP PrintheadNozzle Configuration: Number of Nozzles: 3,200 nozzles
400 nozzles/row × 2 rows/colour x 4 coloursMaximum Printable Area: 300 to 1,619.6mmMargin (Roll Paper): 5mm (Right/ Left) (With Media Edge Plates - 10 mm)Maximum Resolution: 1200 x 1200 dpiMaximum Print Speed: 1 Layer, Colour:
1 pass: Up to 75.1 m²/h (300 x 600 dpi)
2 pass: Up to 38.7 m²/h (600 x 600 dpi)
3 pass: Up to 26.9 m²/h (600 x 600 dpi)
4 pass: Up to 19.2 m²/h (600 x 600 dpi)
4 pass (High Quality): Up to 17.5 m²/h (600 x 600 dpi)
6 pass: Up to 13.5 m²/h (600 x 1200 dpi)
6 pass (High Quality): Up to 12.2 m²/h (600 x 1200 dpi)
8 pass: Up to 10.2 m²/h (600 x 1200 dpi)
8 pass (High Quality): Up to 8.8 m²/h (600 x 1200 dpi)
12 pass: Up to 6.2 m²/h (1200 x 1200 dpi)
16 pass: Up to 4.7 m²/h (1200 x 1200 dpi)
24 pass: Up to 3.3 m²/h (1200 x 1200 dpi)Minimum Ink Droplet Volume: 4.3pl

Ink:

Ink Type: Eco-Solvent InkColours: 4-Colour: Cyan, Magenta, Yellow, BlackInk Capacity: 800ml Ink PackInk Brand Name: UltraChrome GS3 Ink

Roll Media Handling:

Maximum Roll Diameter: Max. 250mmMaximum Roll Weight: Max. 45kgMedia Width: 300 to 1625.6mmMedia Thickness: Less than 1mmMaximum Reel Diameter: Max. 200mm

General:

Memory: 1GBControl Panel: 4.3" Optical Touch Display PanelOptions: Additional Print Drying System/ Media Edge PlateConsumables: Maintenance Parts Kit/ Waste Ink Bottle/ Cleaning Stick/ Clean Room Wiper/ Ink Cleaner

Paper Handling:

Paper Feed Method: Friction FeedPaper Path: Roll (Single Roll)

Recommended System Requirements:

Win PC System Requirement: Windows 8.1/ 10/ 11 (x64)
CPU: Intel Core i3 3.0GHz or faster
Memory: 8GB or more
Storage: 50GB or moreMac System Requirements: Mac OS 10.7 or later

Dimensions and Weight:

Weight: Approx. 278kgDimensions: Printing (without Additional Print Drying System): 2,620 x 912 x 1,338mm (W x D x H)
Printing (with Additional Print Drying System): 2,620 x 989 x 1,338mm (W x D x H)
Stowed (without Additional Print Drying System): 2,620 x 880 x 1,338mm (W x D x H)
Stowed (with Additional Print Drying System): 2,620 x 989 x 1,338mm (W x D x H)

Electrical Specifications:

Power Consumption: Operating: Approx. 650W
Ready: Approx. 480W
Sleep: Approx. 3W
Power Off (Standby): Approx. 0.3WSupply Voltage: AC 100-120V/ 200-240V 50/60Hz

Utility Software:

Utility Software (Web delivery): Windows – Epson Edge Print Pro, Epson Edge Dashboard, Epson Edge Color, Epson Device Admin, Software Updater, Firmware Updater

Recommended Operating Temperature & Humidity:

Temperature: Operating: 15 - 35℃
Storage (after unpacking): -20 - 40℃Humidity: Operating: 20 - 80% (no condensation)
Storage: 5 - 85% (no condensation)
