For Work Printers Large Format Epson SureColor SC-T7730D

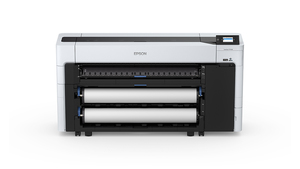

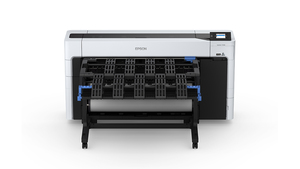

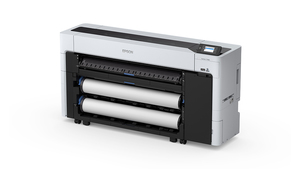

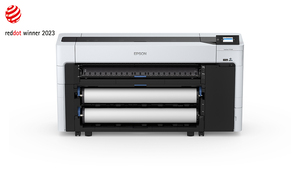

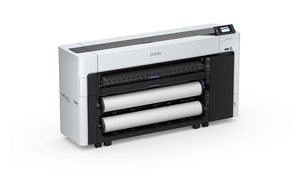

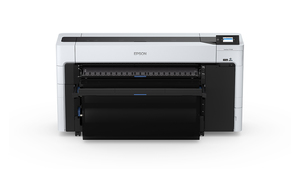

Epson SureColor SC-T7730D Technical Printer


Be ready to amplify your ideas and showcase them in spectacular precision with Epson’s SureColor SC-T7730D technical printer. Equipped with PrecisionCore MicroTFP printheads for precise printing and vivid colour-accurate prints using the UltraChrome XD3 inks, the SC-T7730D brings top-class accuracy and efficiency in every print. On top of its versatile printing capabilities, the printer comes equipped with user-friendly functions and secured management for businesses to enjoy a seamless printing process. Get ready to be mesmerised by the exceptional line printing accuracy and top-class efficiency.

      • Outstanding print speeds for CAD documents of up to 16s (A1 prints) and 28s (A0 prints).
      • Improved image quality with 6 colour UltraChrome XD3 inks.
      • Faster processing of PDF and PS output with the new Adobe Embedded Print Engine.
      • Enhanced security with self-encrypting SSD and print authentication
      • Wide 44” dual roll design for enhanced productivity



      Click here to register for Epson Cloud Solution PORT.

Even when the tiniest details matter, you can trust the SureColor SC-T7730D technical printer to help your businesses deliver remarkable results in every print. Achieving outstanding accuracy even for the finest lines with PrecisionCore printhead technology and an all-new chassis design, the printer also uses a range of top-class technology such as Variable Size Dot Technology to deliver vibrant, crisp prints at fast print speeds.


Now with the larger-sized 2.64” printheads, the Epson SC-T7730D deliver increased productivity with faster speed in industry-leading precise droplet formation. Using the variable-sized droplets technology, businesses can expect crisp line accuracy, sharp text and vibrant photo quality in all their prints.

With the self-encrypting SSD, enjoy improved performance and handling of large print data. The 960GB additional storage memory allows the capability to create folders for PC-less production printing with its data secured by AES-256 and protected by a TPM chip. Users can also opt to set up password protection for specific folders in the in-built storage.

Achieving the finest details both on paper and special media, the UltraChrome XD3 inks with new red ink produce prints in rich and vivid colours, especially for POP materials. Featuring six colours, including the all-new gamut-expanding red ink, businesses can print everything from everyday technical drawings to graphics and renderings. Water, smudge and fade-resistant, this cutting-edge ink set produces durable, vibrant, and long-lasting prints.

Delivering prints with improved accuracy for transparent and overprint layers, the SC-T7730D commands a faster processing time for PDF and PS output. This includes additional support for printing of EPS, PDF, PS, TIFF, JPEG and Cals-G4 data.

With dual-roll capability, operators’ workload is reduced and productivity is maximised. Using the function for automatic selection of different media types and sizes, operators can also use the second reel as a take-up reel for unattended non-stop operation. The sensor detection also allows operators to easily load and unload media for a fuss-free operation.


With intuitive front loading, the SC-T7730D improves convenience for operators with an innovative full frontal operation design. For non-stop productivity and increased efficiency, operational downtime is reduced with high-capacity ink cartridges, storage space for consumables, and dual rollers. Operators can easily check printer status on the 4.3” LCD touch screen, and print directly from USB storage devices.


Epson Print Admin* is a centralised print management solution that creates a secure printing and scanning environment through user authentication. Improve convenience with document distribution and pull printing, set rules and quota for better cost savings. A serverless version is available for organisations that require simple print management.

*Epson Print Admin requires a Windows Server. Epson Print Admin Serverless requires SSD Option.

With the Epson Device Admin, operators can easily deploy and monitor the status of a fleet of mixed Epson devices. The IT admin can automatically update, troubleshoot, provide timely support, and also generate reports for accountability and cost savings. Operators can also monitor the live production status of equipment with Epson Cloud Solution PORT. Improve efficiency, optimise printing workflow, and reduce downtime by receiving accurate support by Epson conveniently with remote troubleshooting.

Make the most out of your Epson SC-T7730D with the Epson Smart Panel app. Transform your iOS® and Android™ mobile devices into an intuitive control centre. Operators can conveniently set up, monitor, print, and scan on Epson printers. With a variety of configuration features, you can customise the app into an all-in-one management app according to your needs.

An easy-to-use RIP software by Epson to provide the best print quality by maximising the printer’s capability with advanced imaging processing technologies. High print performance and accuracy with Adobe PS engine to process PostScript data, the software is able to handle job and colour management for improved efficiency and colour accuracy.

What's in the box:

  • Printer
  • Initial ink cartridge
  • AC power cable
  • Setup guide
  • Software CD-ROM
  • Maintenance box


Print Head: PrecisionCore MicroTFP PrintheadNozzle Configuration: 9,600 Nozzles (400 nozzles x 24 channels x 1 head)Maximum Print Resolution: 2,400 x 1,200 dpiMinimum Ink Droplet Size: 3.5 plPrint Speed: CAD (A1): Plain Paper 300x600dpi Line Draw/Draft: 16s, 600x600dpi Line Draw/Speed: 23s
CAD A0: Plain Paper 300x600dpi Line Draw/Draft: 28s, 600x600dpi Line Draw/Speed: 43s
Poster B0: Plain Paper 300x600dpi EPSON Vivid/Speed: 46s
B0: Plain Paper: 35s (Draft), 46s (Speed), 258s (High Quality), Premium Glossy Photo Paper 170gsm: 152s (Speed), 281s (Quality), 614s (Max Quality)Line Accuracy: ±0.1% or ±0.26 mm Minimum Line Width: 0.08mm*1 (0.02mm*2)Margin (Roll Paper): Top, Bottom: Min. 3mm right, left: Min. 0mm3Margin (Cut Sheet): Top: Min. 3mm, Bottom: Min. 12.7mm right, left: Min. 0mm3

Paper Handling:

Media Thickness: Roll: 0.07mm – 0.8mm, Cut Sheet: 0.07mm – 0.8mm, Poster Board: 0.8mm – 1.5mmPaper Path: Roll (Double Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed)Borderless Print: Sizes (mm): 1118, 1030, 914, 841, 728, 700, 610, 594, 515, 508, 500, 432, 406, 356, 330, 300, 254Maximum Roll Diameter / Weight: 2/3” Core, Max. 170mm/12.5kgPaper Width: Roll: Roll: 254 – 1,118mm
Cutsheet: 203 – 1,118mm


Maintenance Box: Maintenance Box: C13S210115
Borderless Maintenance Box: C13S210116Replacement Printer Cutter Blade: C13S210117110ml Ink Cartridge: Cyan: C13T51F200
Magenta: C13T51F300
Yellow: C13T51F400
Photo Black Ink Cartridge: C13T51F100
Matte Black Ink Cartridge: C13T51F800
Red: C13T51FF00350ml Ink Cartridge: Cyan: C13T50Y200
Magenta: C13T50Y300
Yellow: C13T50Y400
Photo Black Ink Cartridge: C13T50Y100
Matte Black Ink Cartridge: C13T50Y800
Red: C13T50YF00700ml Ink Cartridge: Cyan: C13T50R200
Magenta: C13T50R300
Yellow: C13T50R400
Photo Black Ink Cartridge: C13T50R100
Matte Black Ink Cartridge: C13T50R800
Red: C13T50RF00

Printer Width:

Printer Width: 44"

Dimensions and Weight:

Dimensions (W x D x H): 1,848 x 829 x 975mmWeight: Approx. 155 kg

Electrical Specifications:

Rated Voltage: AC 100-240V 50/60HzRated Current: 3.4-1.6AElectric Power Consumption: Operating: Approx. 70W
Ready: Approx. 32W
Sleep: Approx. 2.0W
Standby: Approx. 0.3W

Ink System:

Ink Type: UltraChrome XD3 Pigment InkColours: Cyan, Magenta, Yellow, Red, Matte Black, Photo Black

Environmental Conditions:

Temperature: Operating: 10°C to 35°C, Storage: -20°C to 40°CHumidity: Operating: 20% to 80% (no condensation), Storage: 5% to 85% (no condensation)Sound Pressure: Operating: Approx. 50dB(A)Sound Power: Operating: Approx. 6.6dB(A)


USB Interface: USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n)Memory: 4GB + 960GB (Option SSD)Mobile: Epson Smart Panel, Apple AirPrintUSB Direct: Supported Format: PDF, TIFF, JPEG, HP-GL/2, HP RTLPrinter Languages : ESC/R raster, HP-GL/2*5, HP RTL*5, Adobe PostScript 3, Adobe PDF 1.7Wi-Fi Direct: Wi-Fi Direct (Simple AP)Control Panel: 4.3” Touch Screen

Operating System Requirements:

Operating System: Windows XP (32bit/64bit) / Vista / 7 / 8 / 8.1 / 10 / 11 Windows Server 2003 SP2 or later / 2008 / 2012 / 2016 / 2019 / 2022 Mac OS X 10.6.8 or later


*Apple AirPrint is a trademark of Apple Inc.

*1 PDF available only for files scanned by integrated scanner.

*2 No stand included for SC-T3130M model.

*3 For scanner date processing
