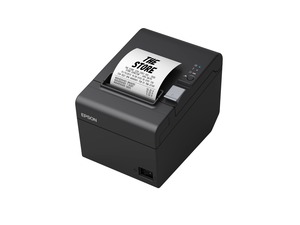

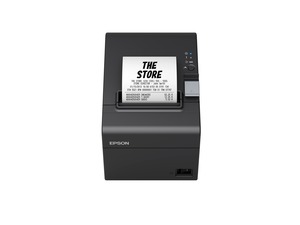

Epson TM-T82III POS Printer

PERFECT PRINTING COMPANION FOR YOUR BUSINESS.

Built with speed, reliability, and functionality, the Epson's TM-T82III features an improved print speed of 250mm/s, with a new print head capable of printing up to 150km of thermal paper and a compact design, it can be mounted anywhere to fit any space. With all the extra details in mind, TM-T82III is a perfect companion for your business.



Unrivalled Performance
MCBF of 60 million lines and an auto-cutter life of 1.5 million cuts.

Versatile Placement
Compactly designed to fit in smaller spaces, with multiple ease-of-use features.

All-in-one Box Convenience
Includes all necessary drivers and accessories for quick set-up.

General Information:


Supported Operating Systems: Windows 7 Sp1, 8, 8.1,10 (32/64 bit), Server 2008, 2008 R2 2012, 2012 R2, 2016, 2019, Embedded POS ready 7, Standard 7, 8.1, Linux, Macintosh

Option:


Wireless LAN: External Wi-Fi Dongle OT-WL06External Buzzer: External buzzer unit

Print Font:


Font: 9 × 17 / 12 × 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24Characters Per Inch: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpiCharacter Size (W x H): 0.88 x 2.13 mm / 1.25 x 3 mm, Hanji font: 3 x 3mm, Thai font: 9 x 24 / 12 x 24Character Set: 95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page) Hanzi: Simplified Chinese: GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Column Capacity Standard:


Paper Width 80mm: 48 / 64, Hanji font: 24, Thai font: 64 / 24Paper Width 58mm: 35 / 46, Hanji font: 17, Thai font: 35 / 46

Column Capacity 42 Column Mode:


Paper Width 80mm: 42 / 60, Hanji font: 21, Thai font: 42 / 60Paper Width 58mm: 42 / 31, Hanji font: 15, Thai font: 42 / 31Character Size (W x H): 0.88 × 2.13 mm / 1.25 × 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mmCharacter Set : 95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page)
Hanzi: Simplified Chinese GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite SymbologyCharacters Per Inch: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi

Data Buffer:


Receive: Data Buffer: 4KB or 45 bytes

Print Speed:


Print Speed: Max 250mm/s

Paper:


Width and Roll Diameter: 79.5 ± 0.5mm
57.5 ± 0.5 × diameter 83.0 mm

Overall Dimensions (D x W x H):


Overall Dimensions (D x W x H): 199 × 140 × 146 mm

Printing Method:


Printing Method: Thermal Line Printing

Standard Accessories:


Standard Accessories ROM: Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply

Dot Density:


Dot Density: 203 x 203 dpi

Mass:


Mass: Approx. 1.7kg

Interfaces:

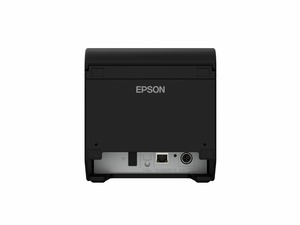

Interfaces: Built-in USB + UIB (Serial or Parallel interface), Ethernet interface

EMI and Safety Standards:


Safety Standards: Oceania EMI AS/NZS CISPR32 Class A

Interface:


Interface: Built-in USB + Serial (9pin) / Ethernet Interface

Reliability:


MTBF: 360,000 hoursMCBF: 60,000,000 linesPrinter Mechanism Life: 15 million linesAuto Cutter Life: 1.5 million cuts

Power:


Power Consumption: Operating: Approx. 1.5A (Mean / Print ratio 18% with print pattern)
Standby: Approx. 0.1A (Mean)Power Supply: External power supply (Model: PS-180)Supply Voltage: DC +24V ± 7%

Receive Data Buffer:


Receive Data Buffer: 4KB or 45 bytes

Printer Details:


Other Features: Built-in: Automatic Paper Reduction, Automatic paper cut with logo printing, QRCode Quick Pairing (for Ethernet Model only)
