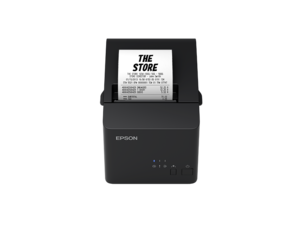

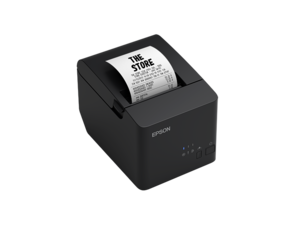

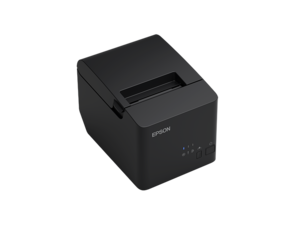

Epson TM-T82X POS Printer

FLEXIBILITY AND RELIABILITY AT YOUR FINGERTIPS.

Enjoy the power of reliability and flexibility in your business with the cost effective TM-T82X. Printing at a high speed of 200mm/s, the easy-to-configure printer supports USB, Ethernet, and RS-232, and can be fitted anywhere thanks to its compact and durable body. A perfect companion for small business owners.



Unrivalled Performance
MCBF of 60 million lines and an auto-cutter life of 1.5 million cuts.

Ease-of-use
The TM-T82X features drop-in paper loading, auto cutter and status LEDs.

Adaptive Design
Space saving compact design makes it easy to suit even the most demanding retail environment.

General Information:


Supported Operating Systems: Windows, Mac, Linux
ePOS SDK Available for Android, iOS

Option:


External Buzzer: Yes

Print Font:


Font: 9 × 17 / 12 × 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24Characters Per Inch: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpiCharacter Size (W x H): 0.88 × 2.13 mm / 1.25 × 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mmCharacter Set: 95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page)
Hanzi: Simplified Chinese: GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Print Speed:


Print Speed: Max 200mm/s

Paper:


Width and Roll Diameter: 79.5 +- 0.5mm (for TM-T82X-441, 442 model)

Overall Dimensions (D x W x H):


Overall Dimensions (D x W x H): 192 x 149 x 140 mm

Printing Method:


Printing Method: Thermal Line Printing

Standard Accessories:


Standard Accessories ROM: Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, USB cable for USB + Serial model

Dot Density:


Dot Density: 203 x 203 dpi

Mass:


Mass: Approx. 1.5kg

EMI and Safety Standards:


Safety Standards: Singapore IEC62368-1

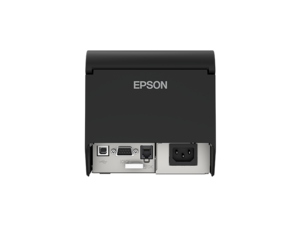

Interface:


Interface: Built-in USB + Serial (9pin) / Ethernet Interface

Reliability:


MTBF: 360,000 hoursMCBF: 60,000,000 linesPrinter Mechanism Life: 15 million linesAuto Cutter Life: 1.5 million cuts

Power:


Power Consumption: Operating: Approx. 27.8 W
Standby: Approx. 0.96 WPower Supply: Built-in power supplySupply Voltage: AC 100 to 230V / 50 to 60 Hz

Receive Data Buffer:


Receive Data Buffer: 4KB or 45 bytes

Printer Details:


Other Features: Built-in: Automatic Paper Reduction, Automatic paper cut with logo printing, QRCode Quick Pairing (for Ethernet Model only)
