Scanners Sheetfed Scanners Epson WorkForce DS-32000

Epson WorkForce DS-32000 A3 Duplex Sheet-fed Document Scanner

HIGH-SPEED A3 SCANNER FOR YOUR BUSINESS

At Epson, we focus on every detail of your business. Designed to support high-volume scanning environments, the WorkForce DS-32000 combines performance, speed and durability in a sleek, compact design. With a daily duty cycle of 40,000 pages and speeds of up to 180 ipm, this scanner deliver efficient document scanning with a diverse range of media handling at exceptional quality for higher productivity.

      • Scanning speeds of up to 90 ppm / 180 ipm
      • One-pass duplex scanning
      • Scan up to A3
      • 2.7” colour LCD screen
      • Epson PaperCare: Advanced Paper Protection Function



Durable, High-speed Scanning
Designed for fast, high-volume scanning, enjoy scanning speeds of up to 90 ppm / 180 ipm on the DS-32000. With a 120-sheet Automatic Document Feeder for A4 media and high daily duty cycle of up to 40,000 pages, this scanner provides the robust reliability that businesses need.

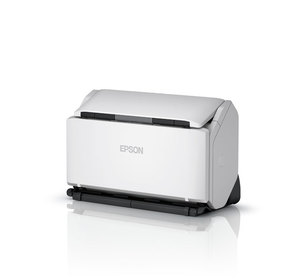

Compact size
Compact in size for better mobility and smaller footprint.

High Quality Image
With built-in functions to improve colour production, the scanner can also remove crease marks, reduce bleed through and even select background colour based on paper type.

2.7” Colour LCD
Equipped with a large screen size of 2.7”, users get a clear display of job contents at a glance and can even view and assign up to 30 jobs at a time on the panel. Operate the scanner easily using push scan functions and change the scan settings directly from the panel without having to use a PC.

Automatic Size Recognition
Place documents of different sizes up to A3 in the middle of the feeding tray and the DS-32000 will automatically detect and scan everything in the correct size, all in a single batch.

Diverse Media Handling with Flexible Scanning Modes
With Epson’s smart design, it is able to scan up to A3 on a wide range of media types of varying thickness (up to 413 g/m2) and up to paper length of 5,588 mm.

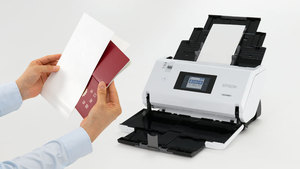

Scanning passports with a special carrier sheet will be automatically detected by the scanners when using Manual Feed mode. This Manual Feed mode can also be used to stitch A2 documents and documents with post-its.

User-friendly Features
Automatic Feeding Mode
The Automatic Feeding Mode enables large volumes of documents to immediately be scanned continuously. In addition, this mode allows you to scan documents one at a time without needing to arrange them by size and they will be saved into a single PDF.

Double Feed Detection Skip Function
Activate the Double Feed Detection Skip function to scan documents with stickers and labels.

Epson PaperCare: Paper Protection Function
Epson’s Paper Protection Technology detects abnormalities in paper posture as well as stapled/folded paper, preventing damage to your important documents.
The inbuilt advanced paper-protection sensors prevent documents from being damaged and ultra-sonic sensors ensure all documents are scanned, maintaining data integrity.

Epson Scan 2
Text Enhancement
Improves text recognition when scanning text documents, whether in colour, greyscale or black-and-white. Removes background for better clarity, which is especially useful for double-sided printed documents.

Document Skew Correction
Automatically adjusts and straightens scanned images.

Colour Enhancement & Colour Dropout
Remove or enhance the visibility of ink signatures such as “Confidential” and “Urgent” stamps. Users can pick one of the preset colours (red, green, blue, pink, purple, yellow, orange, or all colours except black), or use the customised settings to dropout or enhance up to 5 colours of your choice with a single scan. Up to 10 preset colours can be saved for reuse.

PDF Features for Added Convenience
The built-in OCR enables searchable PDF files. Secure your PDF files by setting a password to prevent unauthorised viewing, editing or printing.

Document Management
Document Capture Pro*
Easily scan, view, edit, save and transfer scanned documents. The software recognises barcodes, characters and blank pages in scanned documents for batch separation. It allows you to create up to 30 customised job settings, with the option to assign shortcuts of the scan jobs to the scanner’s operation panel to simplify scan workflow. With the built-in OCR capability, searchable PDF files can be created and documents can be saved into editable Microsoft Office formats. In addition, device and documents can be secured through password protection, by locating and tracking documents using the Advanced Log function.

*Limited functionality for Mac version of Document Capture software.

Document Capture Pro Server**
Document Capture Pro Server helps to centralise your scanning and manage your fleet of scanners without the need to install drivers on individual computers.

**Only for Windows Server OS.

Compatible with Epson Device Admin
With Epson Device Admin, you can now manage, monitor and configure your Epson device fleet easily. It is compatible with a large range of networked printers and scanners, and all information can be viewed via one smart, intuitive interface.

Epson Device Admin Functions

  • Manage Epson devices in groups
  • Receive automatic alerts for quick response when the device faces an error or when it runs out of consumables
  • Generate reports automatically for cost-savings activities
  • Configure multiple devices efficiently with templates to simplify large deployments

Scanning:


Scanner Type: A3 sheet-fed, one-pass duplex colour scannerSensor Type: Colour CISScanning Method: Fixed carriage and moving documentLight Source: White LEDOptical Resolution: 600 x 600 dpiOutput Resolution: 50 - 1,200 dpi (1 dpi increments)Scanner Bit Depth (Colour): 30-bit input, 24-bit outputScanner Bit Depth (Grayscale): 10-bit input, 8-bit outputScanner Bit Depth (Black & White): 10-bit input, 1-bit output

Scan Speed:


ADF Monochrome (Simplex / Duplex): 200 dpi: 90 ppm / 180 ipm
300 dpi: 90 ppm / 180 ipm
600 dpi: 26 ppm / 52 ipmADF Colour (Simplex / Duplex): 200 dpi: 90 ppm / 180 ipm
300 dpi: 90 ppm / 180 ipm
600 dpi: 26 ppm / 52 ipm

ADF Specifications:


Min Document Size: 50.8 x 69mmMax Document Size: 304.8 x 5588mmSupport Paper Thickness: 20 - 413 gsmADF Capacity: A4: 120 sheets, A3: 60 sheets
Delicate Feed Mode: 20 sheets (A4), 10 sheets (A3)Daily Duty Cycle: up to 40,000 pages / dayMulti-feed Detection: Ultrasonic Sensor and Length Detection

Connectivity:


Standard: USB 3.0

Supported OS and Applications:


Supported OS: Windows Server 2003 / 2008 / 2012 / 2016 / 2019
Mac OS X 10.6.8 or later
Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10Scanner Driver Compatibility: TWAIN, ISIS, SANE, WIA, ICABundled Applications: Epson Scan 2, Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Win / Mac)File Format: Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG
Document Capture Pro (Win): JPEG, JPEG2000, BMP, PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX

Dimensions and Weight:


Dimensions (W x D x H): 371 x 167 x 245mmWeight: 6.9kg

Consumables:


Consumables: Pickup Roller (300,000 scans): B12B819631
Separation Roller (300,000 scans): B12B819611

Options:


Options: Carrier Sheet - B12B819051
Passport Carrier Sheet - B12B819651
Cleaning Kit - B12B819291

Control Panel:


LCD Screen: 2.7" Colour LCD Screen

Environmental Conditions:


Temperature: Operating: 5 to 35°C
Storage: -25 to 60°CHumidity: Operating: 15 to 80% (No condensation)
Storage: 15 to 85% (No condensation)

Power:


Rated Voltage: AC 100-240VRated Frequency: 50 - 60HzPower Consumption: Operating: 20W
Ready Mode: 9.5W
Sleep Mode: 1.4W
Power Off: 0.1W

Notes:

*1 Scanning resolution as defined by ISO14473.

*2 Based on A4 documents.
