Projectors Corporate and Education EB-W53

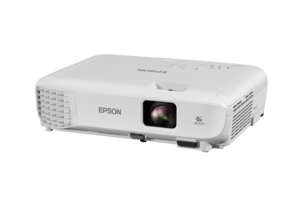

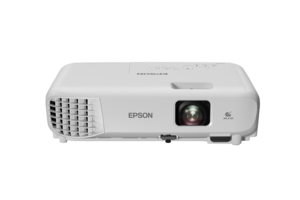

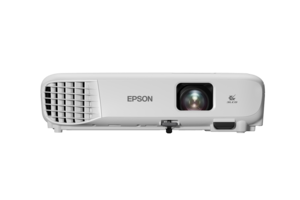

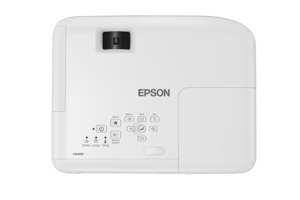

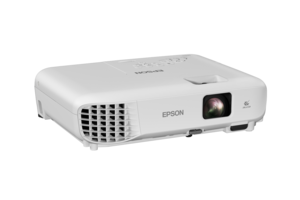

EB-W53 WXGA 3LCD Projector

Zoom In
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector
EB-W53 WXGA 3LCD Projector

Enjoy crisp visuals and easy setup with Epson EB-W53 projector, designed for modern workspaces and classrooms.

Take control of your presentations with Epson’s reliable, high-performance EB-W53 business projector. Whether you’re leading a boardroom meeting or teaching in a busy classroom, this projector deliver crystal-clear visuals that make your content shine. Flexible, user-friendly, and built to impress– Epson EB-W53 is your smart choice for impactful presentations, every time.

  • 3LCD tecnology for bright, vivid image quality.
  • 4000 lumens of colour and white brightness*1
  • WXGA resolution for clear, detailed images
  • Built-in 2W speakers
  • Extended usage with long lamp life up to 12,000 hours in Eco model.

    •

Find Accessories

WXGA Resolution
Displaying clear and crisp visuals thanks to its WXGA resolution, the Epson EB-W53's high resolution is able to support vivid display on large screen sizes

Easy Maintenance and Longer Lamp Life
A long lamp life reduces maintenance and costs. The lamp will last up to 12,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.

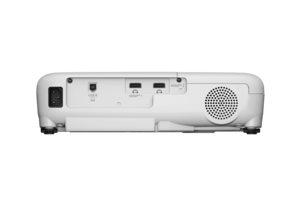

Various Interfaces
Epson business projectors support a wide range of connectivity options. These interfaces support connections to both the latest digital devices as well as the existing legacy of analogue products without the need for adaptors.

Flexible Display Size
Why settle for smaller screens when you can have more 120" and even up to 300"? EB-W53 supports a variety of aspect ratio and display size up to 375" diagonal.

Split Screen Capability
Use the projector to show 2 different images from 2 different devices at the same time using split screen function. Example, you can now show your presentation on one side while seeing the video on the other side.

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness*1:

White Light Output (Normal/Eco): 4,000 lm / 2,600 lm Colour Light Output: 4,000 lmLight Output (Center)*2: 4,100 lm

Connectivity:

Network: Wireless LAN : N/ADigital Input: HDMI Type A : 2 (HDCP 1.4)USB Input: USB Type B : 1 (for USB Display, firmware update, Copy OSD Settings)

Contrast Ratio:

Contrast Ratio: 16,000:1

Screen Size (Projected Distance):

Zoom : Wide: 33” – 375” [0.89 – 10.34 m] Zoom : Tele: 16” – 188” [0.89 - 10.34 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30°

Operating Temperature:

Operating Temperature: Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period: Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: Monaural 2W x 1

Weight:

Weight: Approx. 2.5kg

Air Filter:

Maintenance Cycle*3: 6,000 hours (Normal) / 12,000 hours (Eco)

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 28dB

Power Consumption (220-240V):

Lamp (Normal / Extended): Normal : 332 W
Extended : 231 WStandby (Normal / Eco) : N/A / 0.3 W

Direct Power On / Off:

Direct Power On / Off: Yes

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H): 302 x 234 x 77 mm

Power Supply:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Specifications of Main Parts:

LCD: Size : 0.59” (C2 Fine)
Driving Method : Poly-silicon TFT active matrix
Pixel Number : 1,024,000 dots (1280 x 800) x 3
Native Resolution : WXGA
Aspect Ratio 16:10
Pixel Arrangement : Cross stripeLight Source: Lamp Type : 210 W UHE
Life (Normal / Eco) : 6000 hours / 12,000 hoursProjection Lens: Type : No Optical Zoom / Focus (Manual)
F-Number : 1.44
Focal Length : 16.7 mm
Zoom Ratio : 1.0 - 2.0 (Digital Zoom)
Throw Ratio : 1.27 – 2.54
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 This light output value is measured at the centre of the screen as a reference value. There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.

*3 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.
